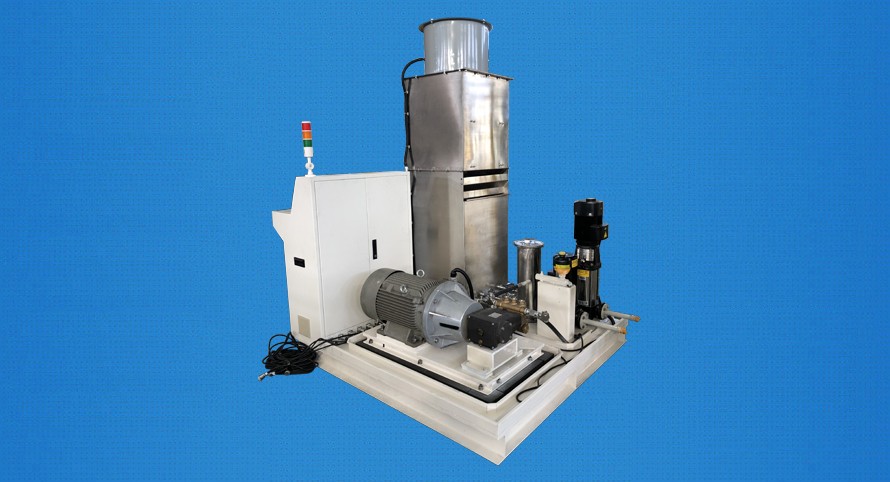

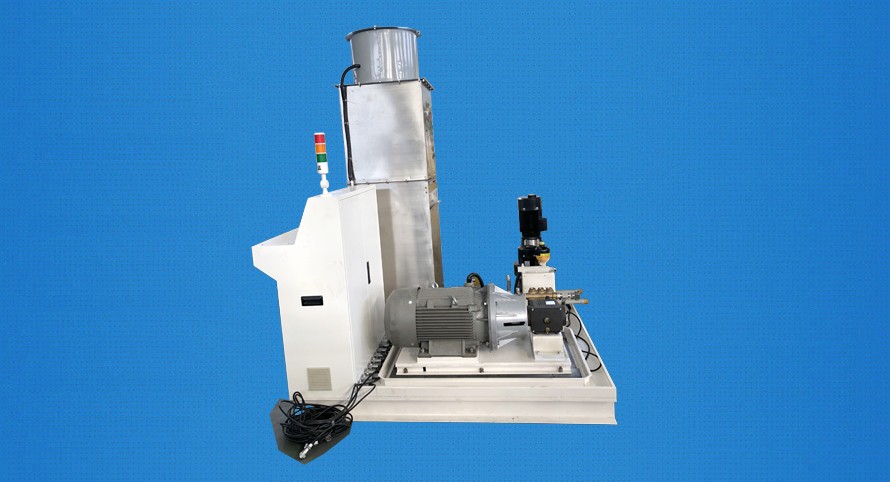

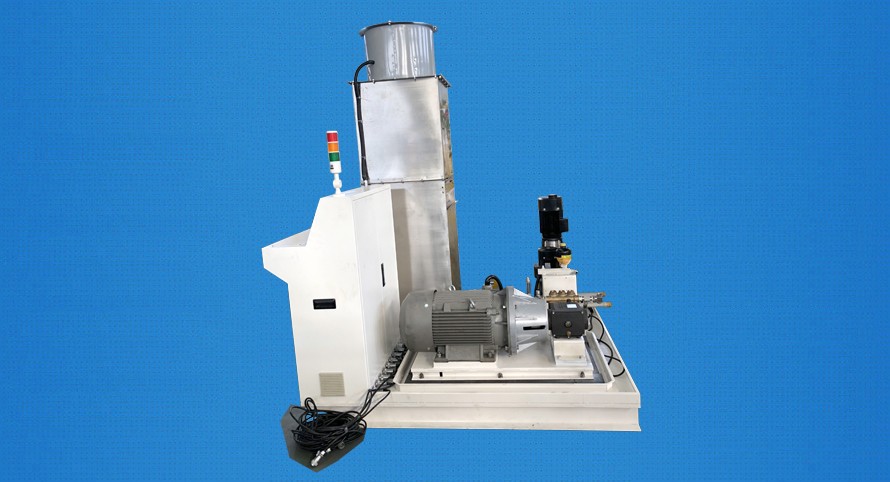

100KG Extrahigh pressure descaling machine
High pressure descaling machine of Descaling Technology is to fill the blank of domestic forging oxide scale removal equipment, from the entry to the mainstream, then to the severe ultra-high pressure oxide scale removal system, which is the good news of Descaling Technology for domestic forging enterprises.
Based on the principle that the thermal expansion rate of the scale is different from that of the parent metal, the scale on the surface of the billet is cooled rapidly when it is heated out of the furnace, resulting in a large shrinkage a network crack; Under the jet of high-pressure water, a small amount of water enters into the crack vaporizes instantly at high temperature, resulting in gas explosion cracking oxide scale preventing water from contacting with the matrix; After the impact of high-pressure water flow, the scattered oxide scale can be washed out to achieve the purpose of completely removing the oxide scale.
1, The main body of the water tank is made of 304 stainless steel and painted with blue sky
2, The exit and entrance adopt integral welding with high parallelism
3, Front and back built-in baffle, less splash, easy maintenance
4，The nozzle mounting seat is welded with stainless steel, which is easy to maintain
5，Comprehensive treatment of oxide skin, less lower the temperature
6，After removing the oxide scale, the metallographic structure of the product has no chang
7，Equipped with workstation, automatically remove oxide scale, reduce maintenance
8，Equipped with cooling tower, multiple filtration
Name | Model | Workstation size(mm) | Equipment size | Total power of equipment | Brand of high pressure pump | High pressure water pump flow |
100KG Extrahigh pressure descaling machine | LTC-100-100 | 3000*2000*2000 | Refer to the model | 40KW | ITALY | 60L/min |
Motor brand | Motor power | Cooling tower brand | Cooling tower power | Electric brand | Brand of multistage magnetic separator | Power of multi-stage magnetic separator |
SIEMENS | 30KW | LITAI | 2KW | Schneider | LITAI | 200W |
Suitable for bar diameter(mm) | Maximum width after blank making | Number of nozzles | Material | Transmission motor | Inverter brand | Transmission mode |
50-200 | 300 | 6 | 304 stainless | Option | SIEMENS | Option |
-
Advanced technology and high quality
Senior R & D team, master mature industry technology, independent R & D design, shape high-end quality from the source
-
Standard manufacturing to make good quality
High precision advanced equipment, standardized production line, accurate control of equipment quality
-
Own software to ensure quality
R&D team develops the corresponding software system according to the customer's requirements (testing the size and demand of the product), customization makes more choices
-
Quality control by quality inspection team
The selection of raw materials, the control of software system development or the quality inspection of products, all are strictly controlled
1.Our personnel are responsible for the installation and debugging of the system to ensure the stable operation of the system and meet the detection requirements of customers
2.When the system is delivered, systematic training shall be given to the users so that they can operate skillfully to judge and solve the basic problems
3.System warranty for one year, lifetime service, enjoy free system upgrade
4.The sales and service personnel will reply to the problems that the customer cannot solve within 2 hours and arrive at the customer within 2 days
